Project author: Jonathan Crawford
Project title: Sundial
The Idea:
The goal of the project is to show off kinematic transformations.

Using a single triangle (three vertices) in object space, I will multiple the object,
and transform the multiples to first create a single piece of paper.

Then, I will fold the paper into the shape of a DIY sundial.

The triangles coordinates will not change by any means other then being translated, scaled or rotated
from its starting position.

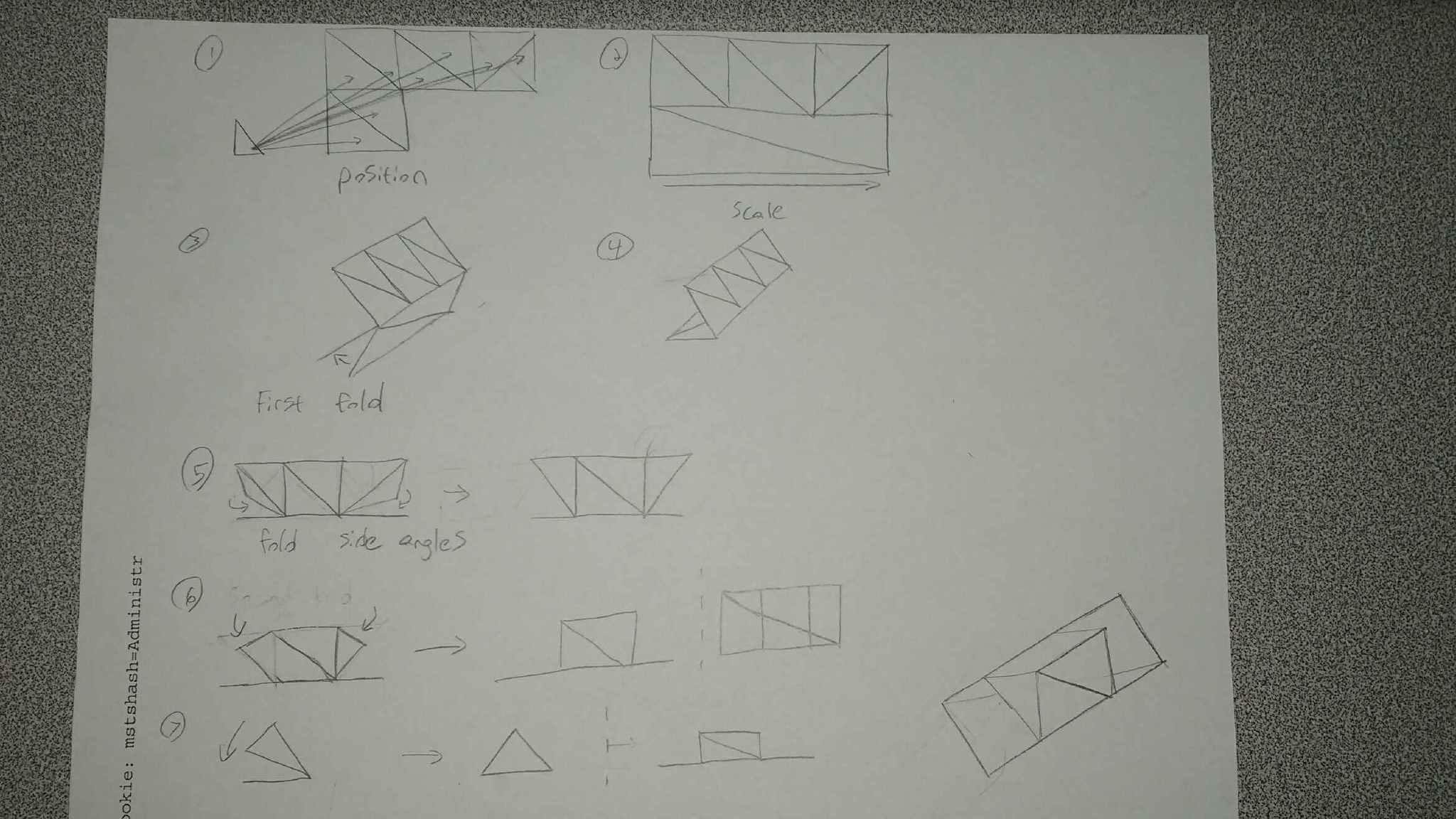

The Design:

Step 1: translate triangles into position.

Step 2: Scale triangles to be appropriate size.

Step 3: Fold the bottom to act as the base.

Step 4: Adjust camera as needed.

Step 5: Fold side triangles behind front panel.

Step 6: Fold the sides. This is what the front will eventually rest on.

Step 7: Fold front panel down to rest on sides.

Finished: The sundial is now complete.

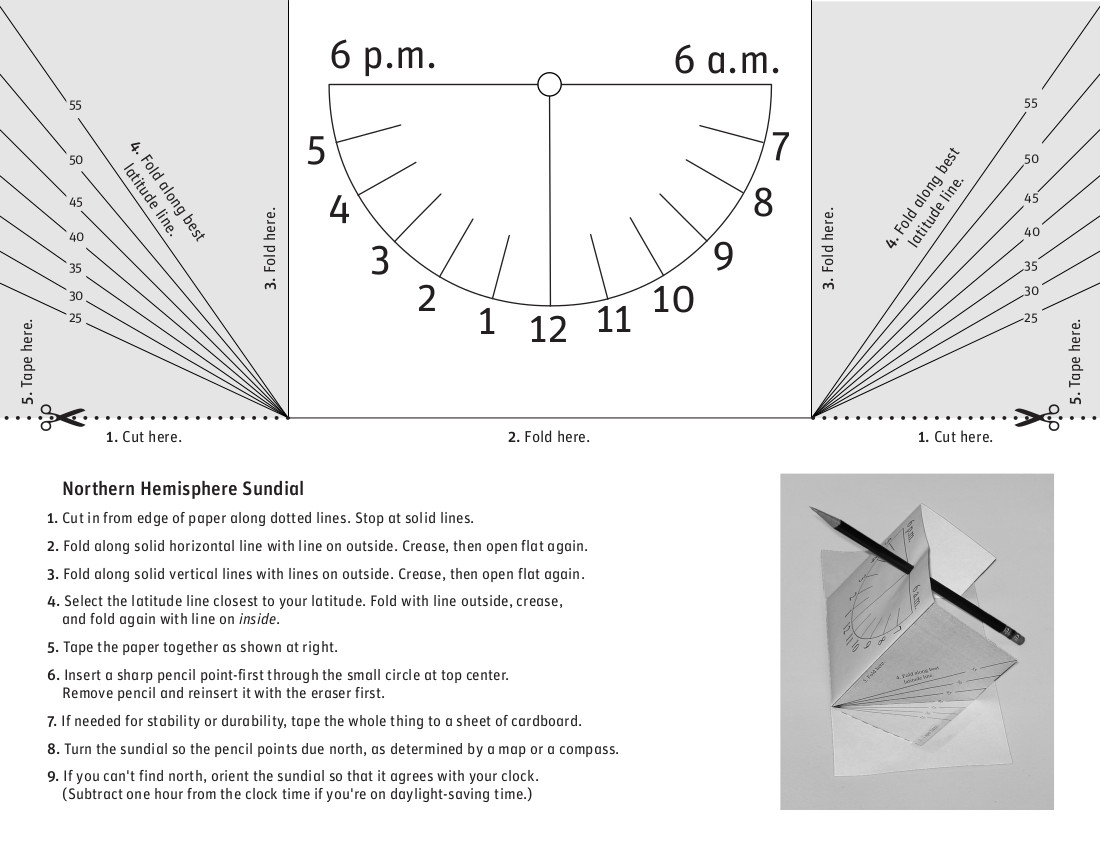

The image of the DIY sundial:
