Introduction

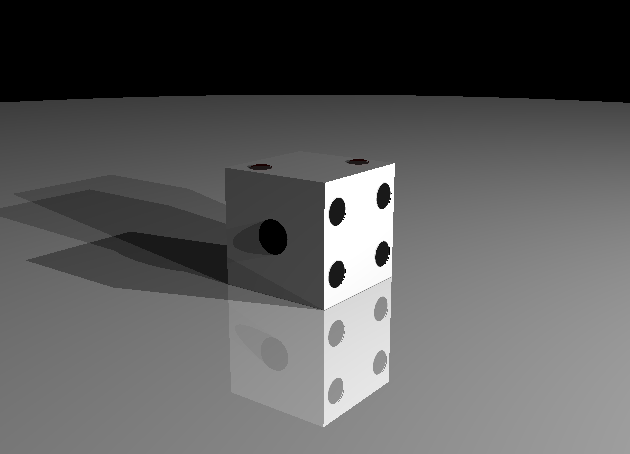

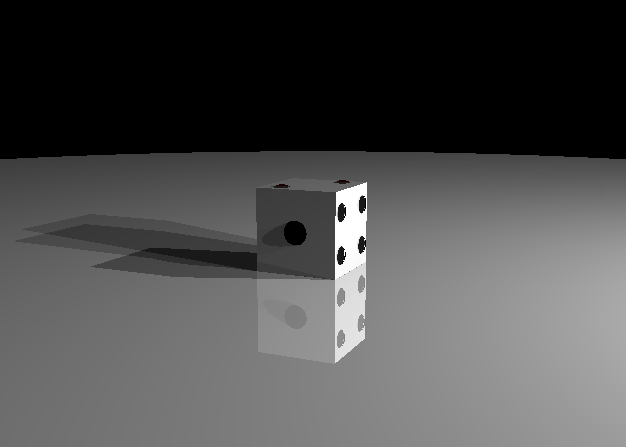

Dice: Recreate a simple dice(s).

  • Special shadows
  • Phong reflection model
  • Specular lighting (reflexion)
  • Ray tracing
  • Multiple light sources

Progress

What's been done

cube glass cube glass cube glass cube glass cube glass cube glass cube glass cube glass cube glass cube glass cube glass cube glass cube glass cube glass

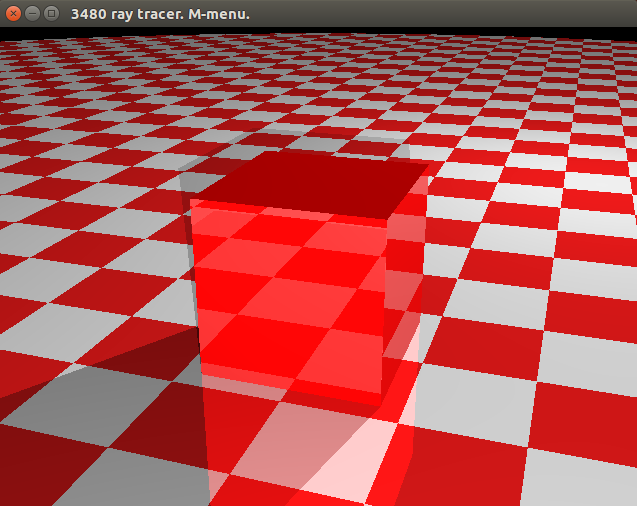

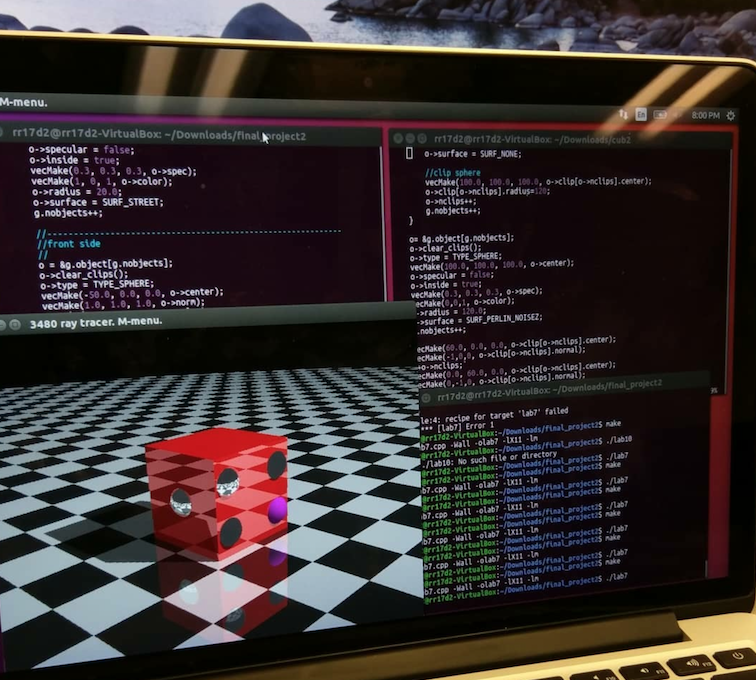

Used lab 07 as my framework. Reason why I used lab 07 is because the lab consists some components that are crucial to this project. The cube with a sphere clipped used in the lab was ideal for my project. My goal is to generate a beautiful well strcture cube and to get the clipping function working the way I want to. Displaying a 3/4 cut sphere to get a realistic concave look for each face of the dice.

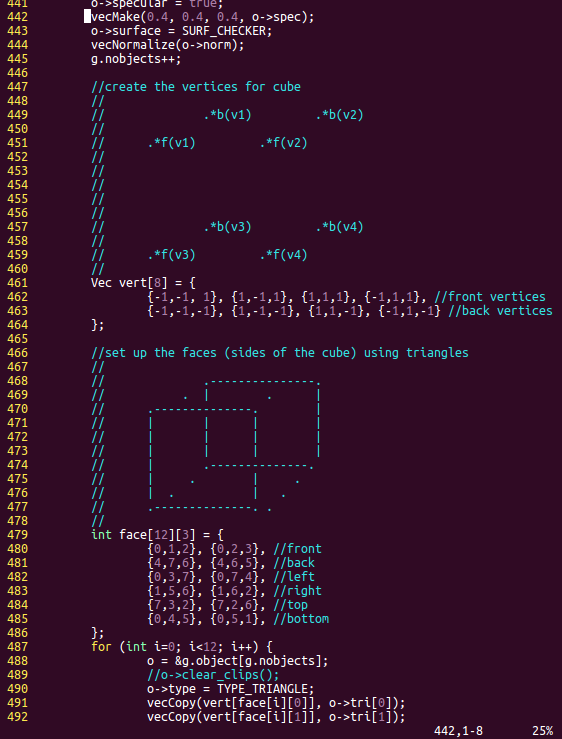

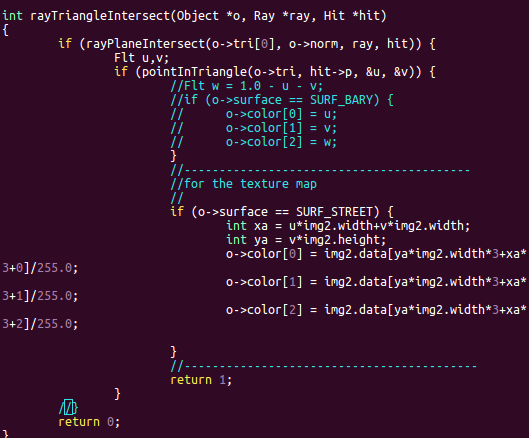

The image on the left is a snapshot of the code to contruct the cube. First I needed to state the vericles of the cube to create the 8 points. As you can see on the image, b(vk) and f(vk) means back(vertices number) and vice versa. These values are put in a vector called "Vec vert[8] = {...}" which takes in 3 integer values. Creating the faces for each side on the cube is handle in the function "int face[12][3] ={...}" [12] means the number of edges and [3] is the number of values in the double array.

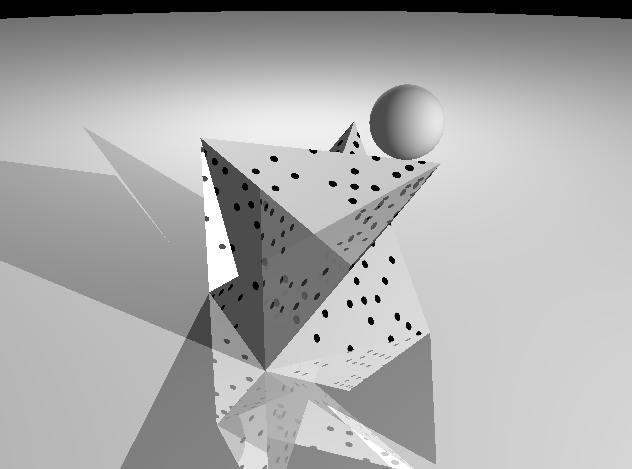

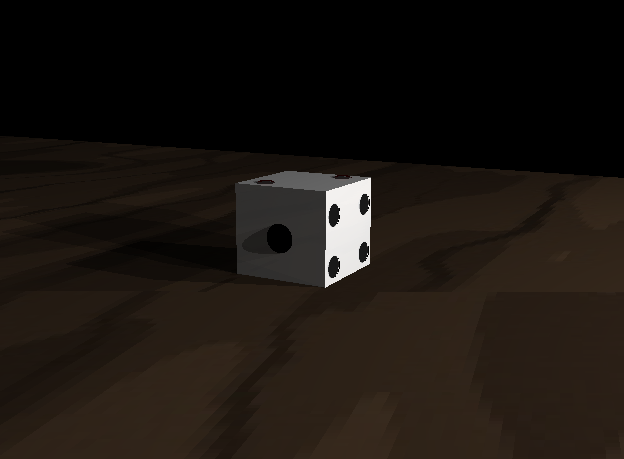

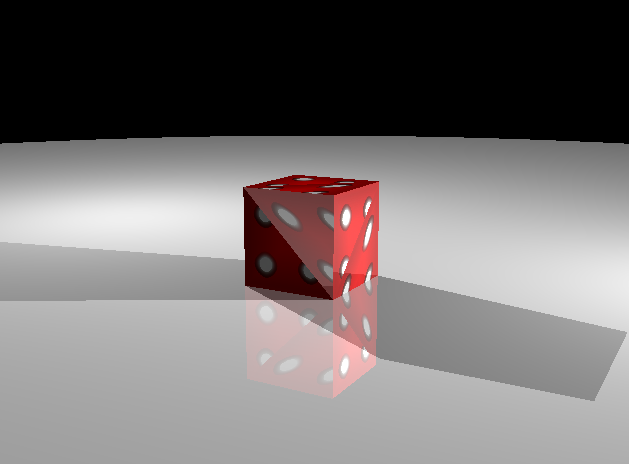

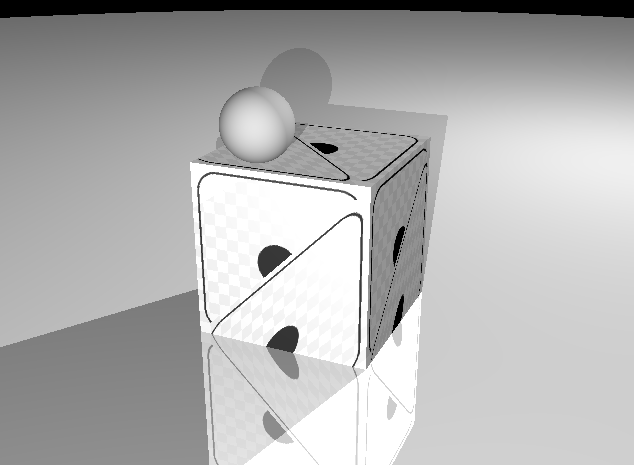

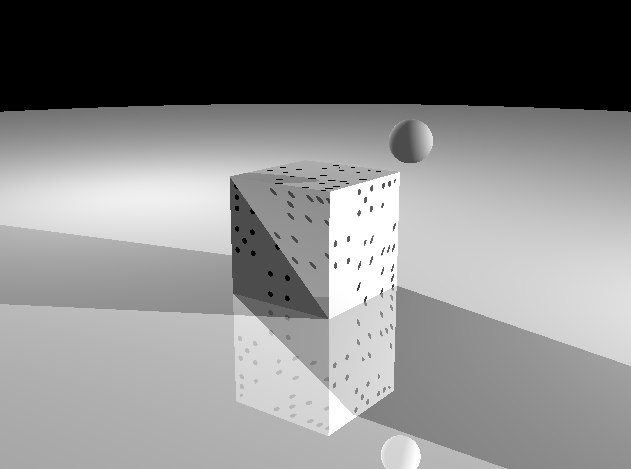

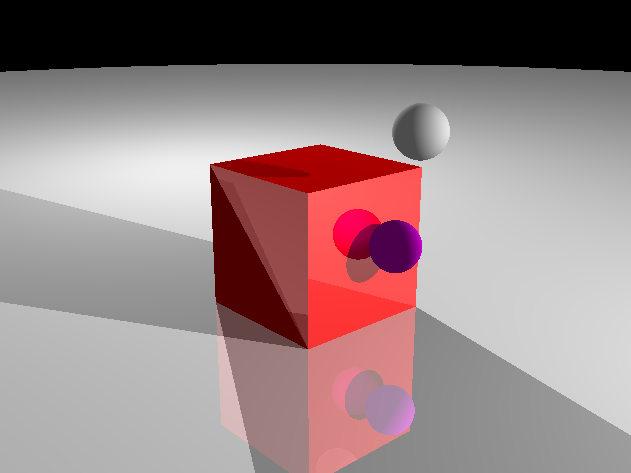

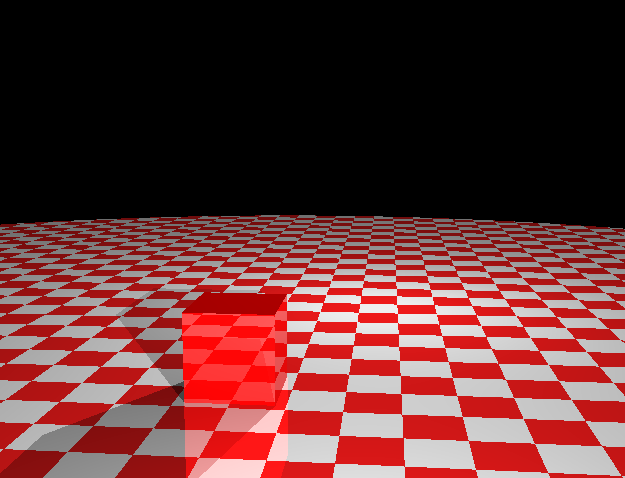

The outcome. I don't know how I got the transparency/reflection look. Possibly it was already in the framework. I like the look and it is possible to re-create the first dice shown above under the introduction section.
